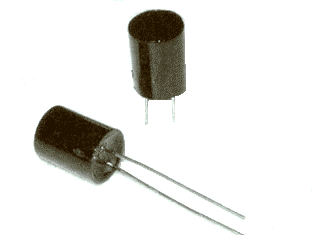

M1012 Series - Radial Shielded Power Chokes

1 mH to 33 mH. Outside Diameter: 10mm. Capped with ferrite sleeve

Power Inductor / Chokes - M1012 Series Shielded Power Inductor


  • VERY LOW COST and high efficiency power inductors and chokes
  • Ideal for switch mode output chokes, DC/DC converters and inverters, EMI suppression, smoothing chokes, etc
  • Fully Shielded with a ferrite sleeve for low EMI
  • Inductance range:1mH to 33mH
  • Lead diameters: 0.16mm to 0.07mm

SPECIFICATIONS

Click the button to see examples of our custom wound products. We wind anything to meet your needs.
Tape and Reel Specs

CONSTRUCTION (mm)


On Line Ordering :

PART NUMBERING

M-1012-103K

M = Shielded Radial Power Choke
10 = O.D. in mm
12 = Height in mm
103 = Inductance
K = 10% ( 5% also available)


1) The prices shown below are for low volume quantity only.
2) Please call
800-377-3244 or email sales@coilws.com for larger volume OEM pricing.
3) CWS is extremely price competitive for large OEM quantities, with prices at a fraction of what is stated below..
4) We will meet or beat all our competitors' pricing with better delivery !!
5)The data shown below can be sorted by Part Number, Inductance, Rated Current, DCR, or any of the columns. To sort, please click on the column headings ( first row ). To sort Part Number in ascending order, click Part Number once. Click Part Number once again to sort it in descending order. Click on Inductance to sort Inductance column in ascending or descending order, etc..



  Part Number Inductance Tolerance Max D.C.
Resistance
(Ohms)
Wire
Size
Test
Frequency
(kHz)
Q MOQ Price
  M1012-333K 33.00 mH + - 10 % 75.0 ohms 0.07 mm 79.6 kHz min. Q= 80 MOQ, Call for Price
