MQB Series

MQB series

A type of of switching frequency, high efficiency and high current DC-DC converters with designated industrial Quarter-Brick Standard footprint and pin compatibility. These converters can reach high power conversion. Combined power processing, control, synchronization, and enclosed packaging allow best cost-reduction, cost-effectiveness, and performance.

MQB
Characteristics:
• High efficiency:
Synchronous Rectifier Topology
• Single, Dual, & Multiple Outputs available
• Ultra wide 8:1 input range
• Fixed switching frequency provides predictable EMI
• No life-span constrained Capacitor inside
• No minimum load requirement
• Output current limit and short circuit protection
• Output over-voltage protection
• Remote sense for the output voltage
• Output voltage trim range of
-10%, and +10%
• Input under-voltage lockout
• Input-to-output isolation (2250V)
• Thermal shutdown

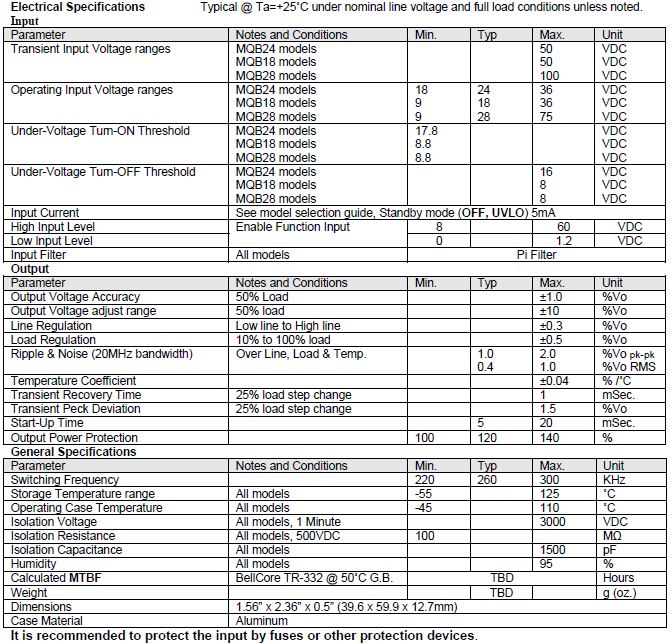

MQBspecs
-RoHS compliant
-UL and EN pending

For technical information refer to:
http://www.coilws.com/images/DC-DCConverters2013.pdf

Please contact us for any questions and more information by email, at sales@coilws.com or call us at 1(800) 377-3244


  Part Number Input
Voltage
(V, typ.)
Input
Current
(A, full load)
Output
Voltage
(V, typ.)
Output
Current
(A, full load)
Output
Power
(W)
Efficiency
@ Full Load (typ.)
Quantity
on hand
Price
  MQB028050-S-E 9-75 2.05 +5 10 50 87% 0
Buy Now

  MQB028120-S-E 9-75 2.46 +12 5 60 87% 0
Buy Now

  MQB018033050-D-E 9-36 5.5 +3.3, +5 10, 10 33, 50 88% 0
Buy Now

  MQB018050120-D-E 9-36 6.9 +5, +12 10, 5 50, 60 88% 0
Buy Now

  MQB018120120-B-E 9-36 7.5 +12, -12 5, 5 60, 60 88% 0
Buy Now

  MQB018050120-T-E 9-36 6.3 +5, ±12 10, ±2 50, 50 88% 0
Buy Now

  MQB024033050-D-E 18-36 4.16 +3.3, +5 10, 10 33, 50 88% 0
Buy Now

  MQB024050120-D-E 18-36 5.2 +5, +12 10, 5 50, 60 88% 0
Buy Now

  MQB024120120-B-E 18-36 5.7 +12, -12 5, 5 60, 60 88% 0
Buy Now

  MQB024050120-T-E 18-36 4.7 +5, ±12 10, ±2 50, 50 88% 0
Buy Now
