Measurement of Conducted Interference

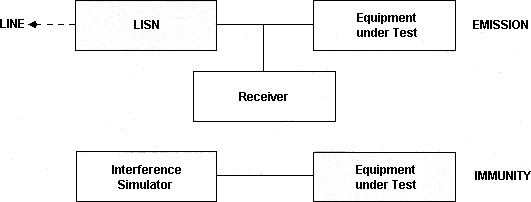

Testing should be performed using:
1) A screened room that allows measurement with the minimum level of background noise
2) A stabilization network of the power line impedance, simulation the average conditions of the network impedance (LIN-Line Impedance Network)
3) A receiver or spectrum analyzer for measuring interference voltages (values in dB/µV)
4) An interference simulator
