MK Series

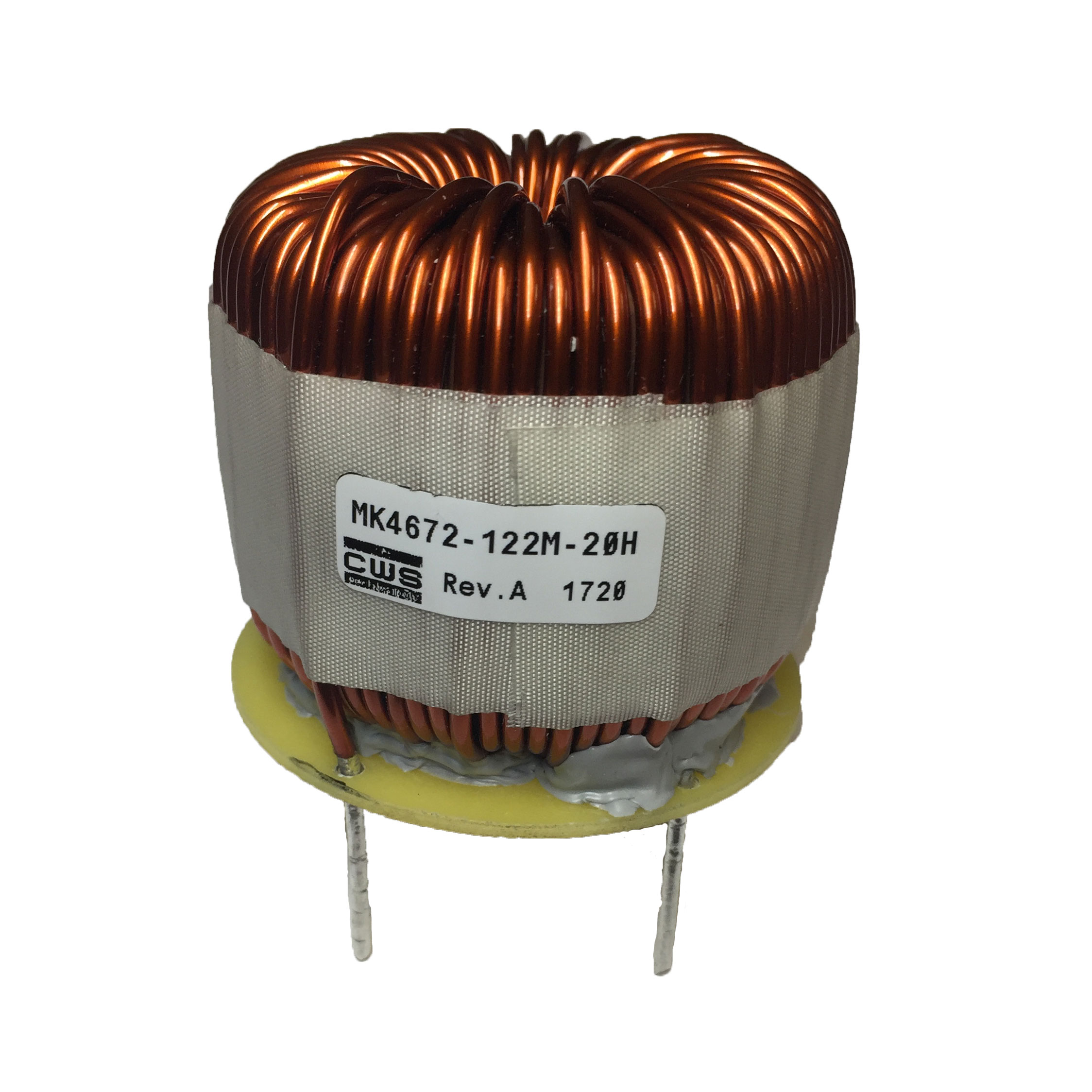

A generic image

Mega Flux, X Flux or Fluxsan Cores used.
Capable of handling very high DC bias current with minimal inductance roll off.
16,000 gauss Saturation Flux.
Through hole mount with pre-tinned leads that can be directly soldered to PCB
We build to meet your specs.
Inductance range from: 13 uH to 600 uH
Current range to 8.0 Amps to 80.0 Amps
Also available in MPP, Sendust/KoolMu cores upon request.

LT SPICE model can be downloaded from the table below.
The instruction for the LT spice application and related files are provided the link LT SPICE for Toroidal Power Inductor Series.


MK Series Mega Flux, X Flux or Fluxsan Toroidal Power Inductors.
Through Hole Mounting Construction



FEATURES:


  • Designed using high saturation and high temperature stability "High Saturation Flux Cores" with distributed air-gap
  • Excellent electromagnetic shielding due to toroidal design
  • Designed for commercial, industrial and military application
  • Low cost designs with pre-tinned leads for PCB through hole mounting
  • Inductance values from 13 uH to 600 uH
  • Current rating from 8 Amps to 80 Amps
  • Temperature Rating: -55 deg C to +125 Deg C
  • Potted version available for military application
  • Custom designs are available to meet your specific requirements
Click HERE to see examples of our custom wound products. We wind anything to meet your needs.

IMPORTANT
1) No tooling or set up fees required for standard parts
2) FREE Samples available for large OEMs
3) Typical Delivery: 4 to 6 weeks


Notes:
1) The prices shown below are for sample quantity. Please call 800-377-3244 or email sales@coilws.com for larger volume OEM pricing.
2) Our large OEM pricing is extremely competitive. We will meet or beat any competitors prices with better deliveries
3) Custom designs are available to meet any of your requirements. Please contact us
4) The data shown below can be sorted by clicking each column header.Click once again to sort in reverse order.
5 ) "Inductance at 1 Khz" ( 2nd column from left in table below ) is the inductance measured at zero or very low DC bias current.
6 ) "Current Rating" ( 3rd column from left in table below ) is based on a 40 deg C temperature rise at an ambient temperature of 90 deg C. This is the DC bias current through the inductor that will cause the inductor will reach a max. temp. rise of 40 deg C. above ambient with NO AIR FLOW.
7 ) The saturation current is at least 5 times the max current listed in 5) or 6) above, so instantaneous high current spikes can be tolerated by these inductors.
8 ) "Dimensions:" A = Outer Dimension, B = Height, C = Vertical Mounting Hole Distances.





High Inductance

Displaying 1 to 5 (of 5 Products)
Part Number uH Current
Rating		 Inductance
Rated Current		 DCR
Max		 SRF
Min		 Dimensions
A / B / C
In Inches		 3D Model Thermal
Model		 LT Spice
Model		 Altium
Library		 Qty. Price
MK4672-122M-20AH 1.2mH 20 Amps 700.0 uH 55.0 mΩ 465 kHz 2.26 / 2.00 / 0.75     LT Spice
Model		 Altium
Library		 In Stock: 0
$81.25
Buy Now
MK5712-162M-20AH 1.6mH 20 Amps 880.0 uH 60.0 mΩ 350 kHz 2.68 / 1.87 / 0.75     LT Spice
Model		 Altium
Library		 In Stock: 0
$85.94
Buy Now
MK5712-620M-65AH 62uH 65 Amps 52.5 uH 2.5 mΩ 6.5 MHz 2.77 / 1.93 / 1.00     LT Spice
Model		 Altium
Library		 In Stock: 0
$75.00
Buy Now
MK5713-102M-42AH 1mH 42 Amps 510 uH 27.0 mΩ 630 KHz 2.89/3.11/2.56     LT Spice
Model		 Altium
Library		 In Stock: 0
$81.25
Buy Now
MK6102-651M-40AH 650uH 40 Amps 350 uH 21.0 mΩ 710 KHz 2.91/2.56/0.75 3D STEP   LT Spice
Model		 Altium
Library		 In Stock: 0
$81.25
Buy Now
Displaying 1 to 5 (of 5 Products)
