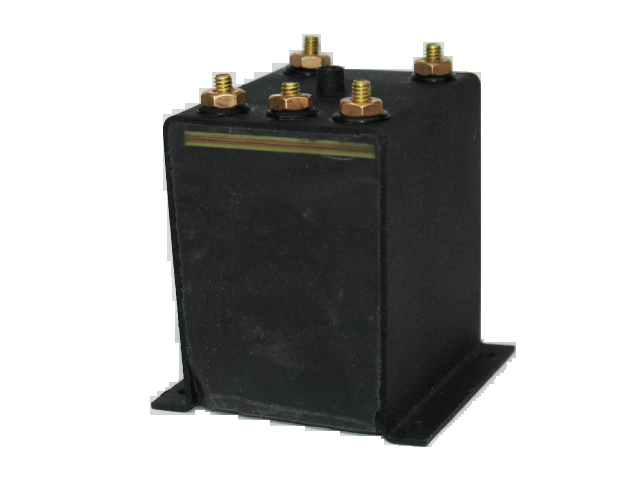

Custom Windings of 400 Hz Military, Navy and Aerospace Power Transformer

400 Hz (60 Hz to 400 Hz) Power Transformers for Military, Naval and Aerospace Application. 60VA to 100VA Power Level.
Potted Construction

FEATURES:

  • Designed using metglass amorphous cores for 60 Hz to 400Hz application.
  • Designed for industrial and military application
  • Temperature Rating: -55 deg C to +125 Deg C
  • Fully potted using thermal conductive potting compound
  • Inputs : 115/120/220/240/280/380/480Vac or any other value
  • Outputs: Single or with center tap. 5/6.5/7.5/9/12/15/24/28/48Vac or Custom outputs of any voltage
  • Custom Mil Spec terminals
  • Anodized metal potting cases, 2500 Vac input/output and input and output to case hipot isolation.


Notes:
1 ) Please call  800-377-3244 or email sales@coilws.com for larger volume OEM pricing.
2 ) Our large OEM pricing is extremely competitive. We will meet or beat any competitors prices with better deliveries
3 ) Custom designs are available to meet any of your requirements. Please contact us
4 ) The data shown below can be sorted by clicking each column header.Click once again to sort in reverse order.



Part Number Inductance Power Rating Frequency Hi-Pot Input/Output Input Voltage Output Voltage 1 Output Current 1 Output Voltage 2 Output Current 2 Dimension
A B C
inches		 Quantity
on hand		 Price
CWS-8LAM-11763 415mH 60VA 400 Hz 1500Vac 115 Vac 26Vac 1.92 Amps 15Vac 0.66 Amps 2.60x1.96x2.90 0
Buy Now
CWS-8LAM-11763-1 0mH 60VA 400 Hz 1500Vac 220 Vac 26Vac 1.92 Amps 15Vac 0.66 Amps   0
Buy Now
CWS-8LAM-11763-2 0mH 60VA 400 Hz 1500Vac 240 Vac 26Vac 1.92 Amps 15Vac 0.66 Amps   0
Buy Now
