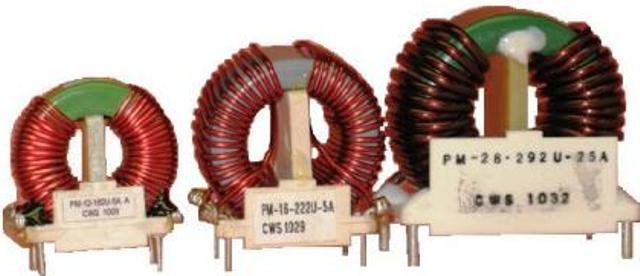

PM Series

- Available as through hole vertical mounting only
- Single layer wound on high permeability ferrite cores for widest frequency range
- Spacer provides 3mm creepage spacing to meet UL, CSA and IEC safety specifications
- All materials used are UL 94VO recognized.
- Dimension : Outside Diameter: 32 mm. Width : 23 mm
- Inductance range from: 0.2 mH to 11 mH
- DCR : 8 milli ohms to 290 milli ohms
- Suitable for SMPS in 100 to 400 Khz range

Notes:

1) The prices shown below are for low volume ( 1 to 10 pieces) quantity. Please call 800-377-3244 or
email sales@coilws.com for larger volume OEM pricing. High volume quantity ( 1K and up) prices are under $1.50 each.

2) Please click the links above to view dimensions, outline drawings, footprints and schematics

3) Interwinding Isolation is 1250 Volts rms

PM Series: 1 Amps to 13 Amps Common Mode Line Choke
High Inductance Series: 0.28 mH to 3.5 mH

Direct Cross to Coilcraft P3213-A, P3214-A, P3215-A, P3216-A, P3217-A,
P3218-A, P3219-A, P3220-A, P3221-A, P3222-A,
P3223-A, P3224-A

  • Separated windings for minimum interwinding capacitance
  • Single layer windings for highest common mode impedance over the widest frequency range
  • Spacer provides 3 mm creepage distance for UL, CSA, IEC compliance
  • All materials used are UL-94V0 recognized
  • Available in 2 series:- PM-S for Standard Inductance and PM-H for High Inductance
  • 200 ¡ÆC insulated solid wires used for high temperature operation
  • Operating temperature: - 40 ¡ÆC to + 85 ¡ÆC. Please call factory for 125 ¡ÆC types
  • Suitable for 100 Khz to 400 Khz in switching frequency
  • Available in vertical header mount for ease in PCB assembly
  • Application includes power line filtering, EMI/RFI for switch mode power supplies
  • Please go to cross reference to see cross to Coilcraft equivalent parts.



Part Number Inductance Max
DCR
(mΩ)
Current
Rating
SRF
Typical
Max
Leakage
Inductance
CrossRef Coilcraft CrossRef
JW Miller/Bourns
Old CWS Part Number 3D Model Thermal
Model
LT Spice
Model
Quantity
on hand
Price
PM-16-503U-2.3A 50mH 220.00 2.3 A 70 KHz 322.00 uH   8116-RC PM-H-503U-2.3A       0 $6.50
Buy Now
PM-16-303U-2.5A 30mH 210.00 2.5 A 2600 KHz 240.00 uH   8109-RC PM-H-303U-2.5A 3D STEP     37 $6.50
Buy Now
PM-16-203U-3A 20mH 121.00 3.0 A 245 KHz 110.00 uH   8110-RC PM-H-203U-3A 3D STEP     1 $6.50
Buy Now
PM-16-123U-4A 12mH 85.00 4.0 A 232 KHz 104.00 uH   8111-RC PM-H-123U-4A 3D STEP     7 $6.50
Buy Now
PM-16-113U-1.5A 11mH 180.00 1.5 A 360 KHz 127 uH P3219-AL   PM-H-113U-1.5A 3D STEP     6 $6.50
Buy Now
PM-12-952U-1.2A 9.5mH 150.00 1.2 A 716 KHz 53.00 uH       3D STEP     66 $6.50
Buy Now
PM-16-702U-2.5A 7.2mH 85.00 2.5 A 514 KHz 68.60 uH P3220-AL   PM-H-702U-2.5A 3D STEP     0 $6.50
Buy Now
PM-12-702U-2.8A 7mH 120.00 2.8 A 6750 KHz 84.00 uH   8105-RC PM-S-702U-3A 3D STEP     0 $5.00
Buy Now
PM-12-502U-3.7A 5mH 44.00 3.7 A 890 KHz 35.00 uH   8106-RC PM-S-502U-4A 3D STEP     0 $5.00
Buy Now
PM-25-402U-15A 4mH 15.00 13.0 A 710 KHz 25.00 uH   8119-RC   3D STEP     55 $10.00
Buy Now
PM-16-372U-4A 3.7mH 70.00 4.0 A 400 Khz 60.00 uH     PM-H-372U-4A 3D STEP     0 $6.50
Buy Now
PM-16-372U-3.2A 3.7mH 43.00 3.2 A 400 KHz 37.84 uH P3221-AL   PM-H-372U-3.2A       0 $6.50
Buy Now
PM-12-352U-1.5A 3.5mH 80.00 1.5 A 784 KHz 60.00 uH P3213-AL   PM-S-352U-1.5A 3D STEP     0 $3.50
Buy Now
PM-25-242U-17A 2.4mH 8.00 17.0 A 1000 KHz 21.00 uH   8120-RC PM-H1-242U-17A 3D STEP     3 $6.50
Buy Now
PM-28-292U-25A 2.4mH 5.50 25.0 A 566 KHz 25.50 uH       3D STEP     424 $8.00
Buy Now
PM-12-192U-9A 1.9mH 17.00 9.0 A 626 KHz 25.00 uH CMT1-1.9-9L     3D STEP     6 $5.00
Buy Now
PM-12-182U-5A 1.8mH 25.00 5.0 A 552 KHz 30.00 uH     PM-S-182U-5A 3D STEP     0 $5.00
Buy Now
PM-12-182U-6.6A 1.8mH 23.00 6.6 A 758 KHz 27.00 uH   8107-RC PM-S-182U-5A 3D STEP     0 $5.00
Buy Now
PM-12-172U-2A 1.7mH 33.00 2.0 A 1200 KHz 32.00 uH P3214-AL   PM-S-172U-2A 3D STEP     0 $3.50
Buy Now
PM-12-152U-3.2A 1.5mH 18.00 3.2 A 1600 KHz 22.00 uH     PM-S-152U-3.2A 3D STEP     3 $5.00
Buy Now
PM-12-102U-3.2A 1mH 15.30 3.2 A 1200 KHz 23.00 uH P32115-AL   PM-S-102U-3.2A 3D STEP     0 $3.50
Buy Now
PM-16-102U-8A 1mH 8 8.0 A 1200 KHz 20.00 uH P3223-AL   PM-H-102U-8A) 3D STEP     9 $6.50
Buy Now
PM-25-102U-20A 1mH 8.00 20.0 A 1330 MHz 10.00 uH   8121-RC PM-H1-102U-20A 3D STEP     24 $6.50
Buy Now
PM-16-901U-15A REVB1 0.9mH 6.00 15.0 A 845 KHz 30.00 uH       3D STEP     0 $6.50
Buy Now
PM-12-751U-5A 0.75mH 8.5 5.0 A 1700 KHz 12.00 uH P3216-AL   PM-S-751U-5A 3D STEP     2 $3.50
Buy Now
PM-16-581U-13A 0.58mH 10.00 13.0 A 1150 KHz 6.32 uH P3224-AL   PM-H-581U-13A 3D STEP     8 $6.50
Buy Now
PM-16-501U-20A 0.5mH 4.00 20.0 A 1000 KHz 30.00 uH       3D STEP     309 $6.50
Buy Now
PM-12-431U-8A 0.425mH 4.26 8.0 A 1750 KHz 6.20 uH P3217-AL   PM-S-431U-8A 3D STEP     0 $5.00
Buy Now
PM-12-281U-13A 0.28mH 2.90 13.0 A 1600 KHz 6.00 uH P3218-AL   PM-S-281U-13A 3D STEP     0 $5.00
Buy Now
PM-16-222U-5A 0               3D STEP     18 $6.50
