C Series

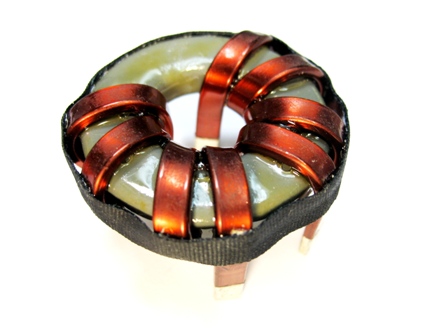

A generic image
- These inductors and output chokes are for filtering noise in dc/dc converters
- The common mode inductors provide a high level of attentuation of common mode currents.
- Up to 80 Amperes of current rating by using flat rectangular wires
- LT SPICE model can be downloaded from the table below.

The LT Spice instruction to use is provided in the link, LT SPICE for C Series.
High Current Chokes and Inductors for DC/DC converters
  • These inductors and output chokes are for filtering noise in dc/dc converters.
  • Cores used are: Micrometals iron powder #26 cores for differential mode chokes, and Magnetic Inc's high permeability manganese zinc ferrite cores with same specs and size. Please call to check availability. Usually many standard products are in stock but there are items that we do not stock. Delivery time could be up to 4 weeks.
  • The differential mode inductors may be used to reduce the differential output noise by approximately 20 dB.The common mode inductors provide a high level of attentuation of common mode currents.

FEATURES:

We can custom design and custom built to any inductance values
and any DC bias currents needed by our customer. Please contact
our sales for your special requirements.

DC Inductor, AC Inductor, DC+AC Inductor, etc.

Notes:
1) The prices shown below are for low volume quantity. Please call 800-377-3244 or
email sales@coilws.com for larger volume OEM pricing.
2) Larger OEM quantities are manufactured at our off shore facilities in Asia. If you have high volume requirements, it is still cheaper to obtain them from us. We will meet or beat any competitors pricing, with better delivery.
3) The data shown below can be sorted by Part Number, Inductance, Rated Current, DCR, or any of the header columns. To sort, please click on the column headings ( first row ).



Helical Wound Common Mode Chokes for DC/DC Converters up to 80 Amps

Displaying 1 to 19 (of 19 Products)
Part Number Inductance Tolerance Max D.C.
Resistance
(Per winding)		 Current Material
Type		 CM/DM Dimension
(OD x Ht)
(inch)		 3D Model Thermal Model LT Spice
Model		 Qty. Price
C-11479-00 REV.D 18.4uH ± 7% 6.6 milli-ohms 12 Amps Iron Powder
Core		 Differential Mode 0.98 x 0.45 3D STEP     In Stock: 21
$6.25
Buy Now
C-14123-00 1.7999uH ± 7% 5.8 milli-ohms 10 Amps Iron Powder
Core		 Differential Mode 0.44 x 0.30 3D STEP     In Stock: 62
$3.44
Buy Now
C-14563-00 27uH ± 7% 8.16 milli-ohms 12 Amps Iron Powder
Core		 Differential Mode 0.90 x 0.52 3D STEP     In Stock: 0
$3.44
Buy Now
C-36A29-01 350uH ± 25% 2.2 milli-ohms 40 Amps Ferrite Core Common Mode 1.68 x 0.50 3D STEP   LT Spice
Model		 In Stock: 22
$12.50
Buy Now
C-36A29-02 2600uH ± 25% 4.5 milli-ohms 10 Amps Ferrite Core Common Mode 1.75 x 0.60 3D STEP   LT Spice
Model		 In Stock: 57
$11.25
Buy Now
C-36A29-03 550uH ± 25% 2.0 milli-ohms 40 Amps Ferrite Core Common Mode 1.68 x 0.50 3D STEP   LT Spice
Model		 In Stock: -1
$12.95
Buy Now
C-36A29-04 1270uH ± 25% 10.0 milli-ohms 10 Amps Ferrite Core Common Mode 1.64 x 0.40 3D STEP   LT Spice
Model		 In Stock: 108
$15.00
Buy Now
C-36A29-05-LF REV E1 900uH ± 25% 1.9 milli-ohms 40 Amps Ferrite Core Common Mode 1.87 x 0.85 3D STEP   LT Spice
Model		 In Stock: 0
$15.63
Buy Now
C-36A29-06 REV.G 70uH ± 25% 0.4 milli-ohms 80 Amps Ferrite Core Common Mode 1.78 x 0.60 3D STEP   LT Spice
Model		 In Stock: 0
$16.25
Buy Now
C-36A29-06 REV.G1                   In Stock: 0
$16.25
Buy Now
Min:  0 Units:  0
C-36A29-06-B REV.G1 70uH ± 25% 0.4 milli ohm 90 Amps Ferrite Core Common Mode 1.75 x 0.60 3D STEP   LT Spice
Model		 In Stock: 255
$19.50
Buy Now
C-36A29-07 110uH ± 25% 0.6 milli-ohms 60 Amps Ferrite Core Common Mode 1.75 x 0.60 3D STEP   LT Spice
Model		 In Stock: 6
$17.50
Buy Now
C-36A29-09 REV.E 70uH ± 25% 0.4 milli-ohms 100 Amps Ferrite Core Common Mode 1.80 x 0.60 3D STEP   LT Spice
Model		 In Stock: 0
$25.81
Buy Now
C-36A29-90 1250uH ± 25% 3.85 milli-ohms 25 Amps Ferrite Core Common Mode 1.44 x 0.80 3D STEP   LT Spice
Model		 In Stock: 0
$10.00
Buy Now
C-36A37-00 330uH ± 25% 4.5 milli-ohms 15 Amps Ferrite Core Common Mode 1.08 x 0.52     LT Spice
Model		 In Stock: 5
$8.60
Buy Now
C-B2133-00 3000uH ± 25% 18 milli-ohms 7 Amps Ferrite Core Common Mode 0.96 x 0.74 3D STEP   LT Spice
Model		 In Stock: 39
$9.81
Buy Now
C-B2134-00 REV F 1000uH ± 25% 6.5 milli-ohms 12 Amps Ferrite Core Common Mode 0.96 x 0.74 3D STEP   LT Spice
Model		 In Stock: 417
$8.75
Buy Now
C-B5071-00 2163uH ± 25% 42.0 milli-ohms 1 Amps
( low profile)		 Ferrite Core Common Mode 0.75 x 0.32 3D STEP   LT Spice
Model		 In Stock: 2
$4.81
Buy Now
C-B5298-00 0.14uH ± 7% 0.6 milli-ohms 40 Amps Iron Powder
Core		 Differential Mode 0.50 x 0.42 3D STEP     In Stock: 42
$3.44
Buy Now
Displaying 1 to 19 (of 19 Products)
