20H

Current rating of 0.38 to 2.2 amps AC. Inductance of 1 to 9 mH.

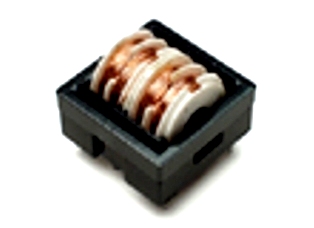

20H Series Common Mode Filter.
Line Filter for filtering common mode power line noise
FEATURES:
  • Very Low Cost single piece ferrite design
  • Zero fringing losses due to use of single piece zero gap ferrite core and winding on split bobbin
  • Designed to meet IEC 950 specifications
  • Di-electric Breakdown of 2500 Vac
  • Temperature range of - 40 deg C to 130 deg C
  • Current Rating of 0.55 Amps to 2.2 Amps
  • DCR of 0.035 ohms to 0.55 ohms
  • Inductance of 0.1 mH to 9 mH
  • Height of 19 mm ( 0.75" ). Length x Width of 23 mm (0.9" )
  • Mounting base : 13 x 10 mm ( 0.5" x 0.4" )

SPECIFICATIONS

Click the button to see examples of our custom wound products. We wind anything to meet your needs.
Outline drawing and Schematic
{Add2}

IMPORTANT
1) No tooling or set up fees required for standard parts
2) Minimum order : $25.00. Samples available for large OEMs
3) Typical Delivery: stock to 6 weeks


CONSTRUCTION INFORMATION

Please see pdf files for details. See link below for some sample PDF files.

20H-100
20H-1K5

Part Numbering
20H - 9K0

20 : 20 mm total height
H : Horizontal mount
9K0- Inductance of 9 mH

Notes:
1 ) The prices shown below are for low volume quantity. Please call 800-377-3244 or
email sales@coilws.com for larger volume OEM pricing.
2 ) Our large OEM pricing is extremely competitive. We will meet or beat any competitors prices with better deliveries
3 ) Custom designs are available to meet any of your requirements. Please contact us
4 ) The data shown below can be sorted by Part Number, Inductance, Rated Current, DRC, or any of the columns. To sort, please click on the column headings ( first row ). To sort "Part Number" in ascending order, click "Part Number" once. Click "Part Number" once again to sort it in descending order. Click on "Inductance" to sort Inductance column in ascending or descending order, etc..

.



Part Number Inductance Current Rating
AC		 Max DCR No. Turns Wire Size
Diameter mm		 Dimension 3D Model Quantity
on hand		 Price
20H-9K0 9mH 0.55 Amps 0.55 ohm 65 0.30 23 x 23 x 19mm 3D STEP 231 $1.65
Buy Now
20H-6K8 6.8mH 0.75 Amps 0.45 ohm 55 0.35 23 x 23 x 19mm 3D STEP 245 $1.65
Buy Now
20H-5K6 5.5999mH 0.75 Amps 0.40 ohm 52 0.35 23 x 23 x 19mm 3D STEP 1 $1.65
Buy Now
20H-2K2 2.2mH 1.25 Amps 0.14 ohm 30 0.45 23 x 23 x 19mm 3D STEP 27 $1.65
Buy Now
