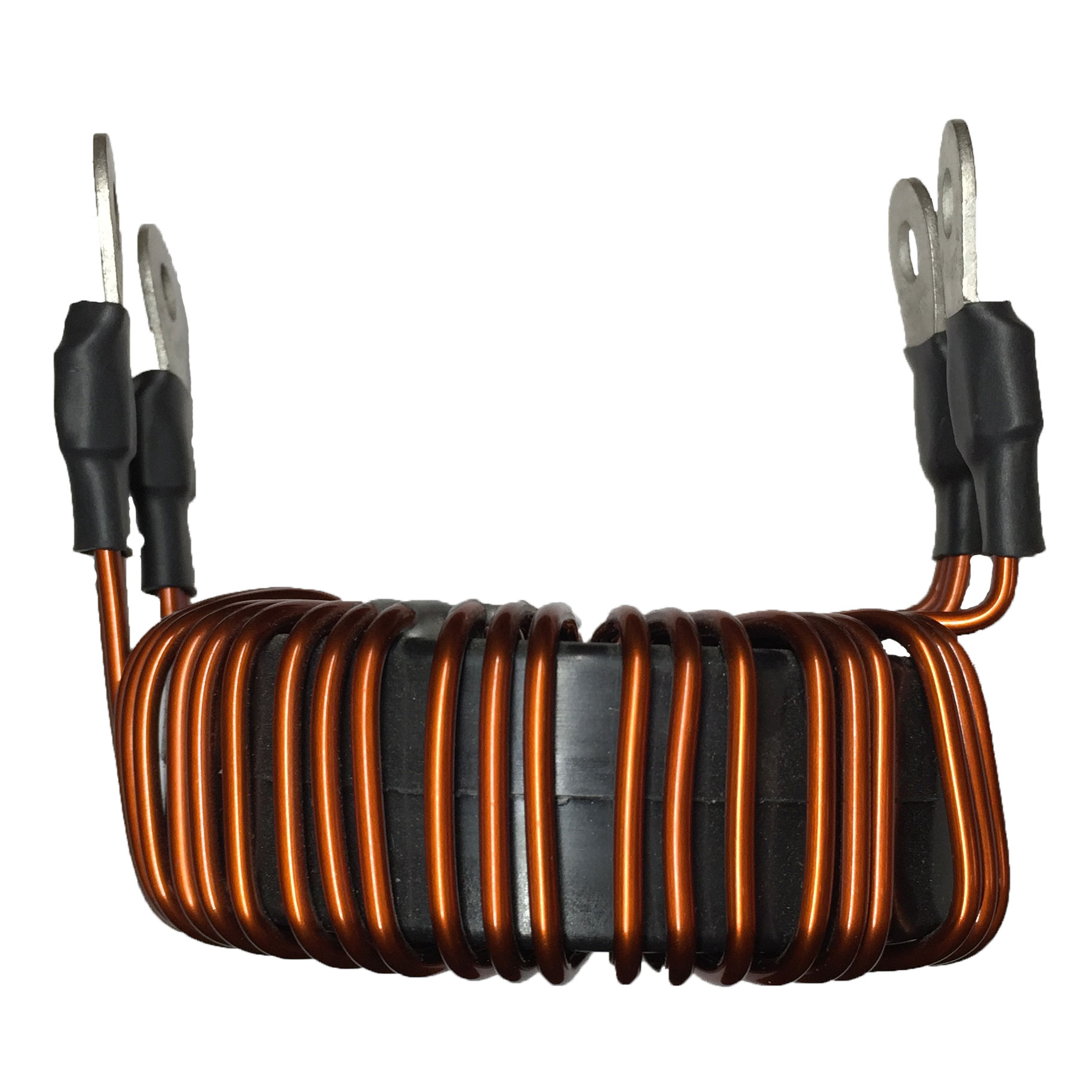

LN Series
Displaying 1 to 4 (of 4 Products)
| Part Number | mH | Impedance (min) @ 1 Mhz |
Current Rating | Leakage Inductance (typ) @ 10 Khz |
SRF (typical) | Interwinding Capacitance (typ) @ 100 Khz |
DCR on Each Winding (max) | OD x Width mm |
Lead Diameter Nom. Inch [mm] |
Weight (grams) | 3D Model | Thermal Model |
Power Loss |
LT Spice |
Qty. | Price |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LN-H-121U-83A  |
120uH | 116 Ω | 83 Amps | 2.5 uH | 1.0 MHz | 3.75 pF | 0.5 mΩ | 71.12x20.25 | 0.50x0.08 [12.80x2.00] | 290 |  |  |  |  | In Stock: 0 | $118.75 Buy Now |
| LN-H-602U-100A |
6mH | 3.2 kΩ | 100 Amps | 7.7 uH | 2.5 MHz | 4.0 pF | 1.3 mΩ | 96.52x34.29 | 0.06x0.625 [1.52x15.88] | 820 | 3D STEP |  |  |  | In Stock: 1 | $118.75 Buy Now |
| LN-H-602U-100A-SP01 | Â | Â | Â | Â | Â | Â | Â | Â | Â | Â | Â | Â | Â | In Stock: 0 | Buy Now Min: Â 0 Units: Â 0 |
|
| LN-H-602U-100A-SP02 | Â | Â | Â | Â | Â | Â | Â | Â | Â | Â | Â | Â | Â | In Stock: 0 | Buy Now Min: Â 0 Units: Â 0 |
Displaying 1 to 4 (of 4 Products)
