CX Series

Surface mount magnetics that can be used as single or coupled inductors or 1:1 transformers that provide isolation between two windings SD types are designed around high frequency low loss material. IP types are lower cost versions of SD offering high saturation flux density. HF offers higher current ratings and higher saturation flux densities than SD or IP types. Secure 4 terminal mounting Inductor more versatile inductance combination by series or parallel connections.
Inductance range from: 0 uH to 100 uH Current range to 1.7 Amps to 15 Amps

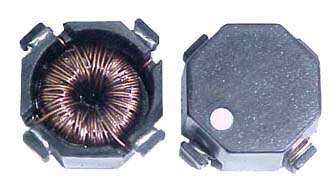

CX Series Surface Mount
Power Inductors and Transformers.

FEATURES:

CWS equivalent parts to Coiltronics ECON-PAC, OCTA-PAC and OCTA-PAC PLUS

Surface mount magnetics that can be used as single or coupled inductors or 1:1 transformers that provide isolation between two windings

SD types are designed based on high frequency low loss Kool Mu material
IP types are lower cost versions of SD types offering high saturation flux density
HF types offer higher current ratings and higher saturation flux densities than SD and IP types
Secure 4 terminal mounting
Parallel and series connections allow for versatility in inductance value of inductor
Application areas include Computers and Portable power devices, LCD panels, DVD players, Inductors: DC-DC converters, Buck boost, foward, and resonant converters, Noise filtering and filter chokes, Transformers: 1:1 300 Vdc isolation, flyback, sepic, High current/Low voltage converters, High-speed computers, Video game machines, Output chokes, EMI filters.
Surface mount
Inductance values from 0.3 uH to 300 uH
Current rating from 3.2 Amps to 28.5 Amps
Temperature Rating: -55 deg C to +105 Deg C
Storage temperature range: -40 deg. C. to + 125 deg. C.
Operating ambient temperature range: -40 deg. C. to + 85 deg. C.
Infrared reflow temperature: + 240 deg. C. for 30 seconds maximum

Custom designs are available to meet your specific needs.

Click HERE to see examples of our custom wound products. We wind anything to meet your needs.

IMPORTANT
1) No tooling or set up fees required for standard parts
2) Minimum order : $25.00. FREE Samples available for large OEMs
3) Typical Delivery: 1 to 2 weeks

Notes:
1) The prices shown below are for low volume quantity. Please call? 800-377-3244 or email sales@coilws.com for larger volume OEM pricing.
2) Our large OEM pricing is extremely competitive. We will meet or beat any competitors prices with better deliveries
3) Custom designs are available to meet any of your requirements. Please contact us
4) The data shown below can be sorted by clicking each column header.Click once again to sort in reverse order.
5) "OCL" = Open Circuit Inductance at 100 Khz, 0.25 Vrms, 0.0 ADC
6 ) Core used: - HF = High Flux; - SD = sendust; - IP = Iron Powder

Displaying 1 to 100 (of 100 products)

Part Number Inductance Parallel
Full Load
Inductance
(uH min) Parallel
Full
Load/Peak
Current
(Amp) Parallel
DCR
(Ohms
max) Series
OCL
-/ + 25%
(uH) Series
Full
Load/Peak
Current
(Amps Series
DCR
(Ohms
max) Series
Full Load
Inductance
(uH min) COOPER
Coiltronics
Cross Quantity
on hand Price

CX300-2-HF 303.7uH 300.00 0.60 A 1.174 1215.00 0.30 A 4.697 927.00 CTX300-2A-R 0 $5.00

CX300-4-HF 302.8uH 300.00 0.76 A 0.787 1211.00 0.38 A 3.148 898.00 CTX300-4A-R 0 $5.00

CX300-2-SD 300.8uH 169.06 0.38 A 1.231 1203.20 0.19 A 4.929 676.24 CTX300-2-R 0 $5.00

CX300-2-IP 300.42uH 197.52 0.42 A 1.176 1201.70 0.21 A 4.703 790.08 CTX300-2P-R 0 $5.00

CX300-4-IP 298.93uH 188.03 0.54 A 1.003 1195.72 0.27 A 4.011 752.13 CTX300-4P-R 0 $5.00

CX300-4-SD 298.12uH 147.92 0.62 A 0.672 1192.46 0.31 A 2.687 591.66 CTX300-4-R 0 $5.00

CX200-2-IP 201.59uH 138.49 0.46 A 0.951 806.34 0.23 A 3.804 553.97 CTX200-2P-R 0 $5.00

CX200-4-SD 200.7uH 111.08 0.64 A 0.545 802.82 0.32 A 2.180 444.32 CTX200-4-R 0 $5.00

CX200-4-HF 200.4uH 200.00 0.94 A 0.521 801.80 0.47 A 2.085 590.00 CTX20-4A-R 0 $5.00

CX200-4-IP 200.11uH 131.37 0.60 A 0.810 800.44 0.30 A 3.240 525.47 CTX200-4P-R 0 $5.00

CX200-2-SD 198.58uH 122.94 0.39 A 0.796 794.30 0.20 A 3.184 491.76 CTX200-2-R 0 $5.00

CX200-2-HF 197.5uH 200.00 0.75 A 0.950 790.00 0.38 A 3.800 643.00 CTX200-2A-R 0 $5.00

CX150-4-HF 153.5uH 150.00 1.07 A 0.365 613.90 0.54 A 1.462 449.00 CTX150-4A-R 0 $5.00

CX150-2-HF 152.9uH 150.00 0.85 A 0.842 611.80 0.43 A 3.366 514.00 CTX150-2A-R 0 $5.00

CX150-4-SD 148.23uH 77.17 0.82 A 0.372 592.90 0.41 A 1.488 308.69 CTX150-4-R 0 $5.00

CX150-2-IP 148.1uH 100.07 0.56 A 0.665 592.42 0.28 A 2.660 400.27 CTX150-2P-R 0 $5.00

CX100-2-HF 102.38uH 100.00 1.04 A 0.695 409.50 0.52 A 2.778 352.00 CTX100-2A-R 0 $5.00

CX100-4-HF 100.57uH 100.00 1.32 A 0.235 402.30 0.66 A 0.939 291.00 CTX100-4A-R 0 $5.00

CX100-2-SD 99.45uH 57.45 0.63 A 0.216 397.81 0.32 A 1.828 229.79 CTX100-2-R 11 $5.00

CX100-4-SD 99.23uH 54.56 0.92 A 0.302 396.90 0.46 A 1.210 218.25 CTX100-4-R 0 $5.00

CX100-2-IP 99.14uH 69.56 0.62 A 0.541 396.58 0.31 A 2.162 278.22 CTX100-2P-R 0 $5.00

CX100-4-IP 99.09uH 69.54 0.72 A 0.565 369.38 0.36 A 2.259 278.15 CTX100-4P-R 0 $5.00

CX68-2-IP 68.85uH 47.93 0.76 A 0.362 275.40 0.38 A 1.445 191.71 CTX68-2P-R 0 $5.00

CX68-4-HF 68.21uH 68.00 1.61 A 0.153 272.80 0.80 A 0.612 194.00 CTX68-4A-R 0 $5.00

CX68-2-SD 67.87uH 38.71 0.78 A 0.303 271.47 0.39 A 1.214 154.83 CTX68-2-R 0 $5.00

CX68-4-SD 67.08uH 35.29 1.20 A 0.157 268.32 0.60 A 0.630 141.15 CTX68-4-R 0 $5.00

CX68-2-HF 66.44uH 68.00 1.29 A 0.342 265.80 0.65 A 1.367 219.00 CTX68-2A-R 0 $5.00

CX68-4-IP 63.37uH 43.04 1.10 A 0.238 269.50 0.55 A 0.952 172.16 CTX68-4P-R 0 $5.00

CX50-2-SD 51.18uH 28.79 0.92 A 0.210 204.73 0.46 A 0.839 115.16 CTX50-2-R 0 $5.00

CX50-4-SD 50.18uH 25.03 1.50 A 0.111 200.70 0.75 A 0.443 100.11 CTX50-4-R 0 $5.00

CX50-4-HF 50.11uH 50.00 1.88 A 0.104 200.40 0.94 A 0.418 141.00 CTX50-4A-R 0 $5.00

CX50-2-HF 49.38uH 50.00 1.50 A 0.240 197.50 0.75 A 0.961 161.00 CTX50-2A-R 0 $5.00

CX50-2-IP 49.1uH 35.31 0.82 A 0.305 196.38 0.41 A 1.221 141.24 CTX50-2P-R 0 $5.00

CX50-4-IP 48.8uH 32.21 1.20 A 0.201 195.20 0.60 A 0.805 128.83 CTX50-4P-R 0 $5.00

CX33-2-HF 34.84uH 33.00 1.79 A 0.162 139.40 0.89 A 0.649 113.00 CTX33-2A-R 0 $5.00

CX33-4-HF 34.8uH 33.00 2.25 A 0.071 139.20 1.13 A 0.283 98.00 CTX33-4A-R 0 $5.00

CX33-4-IP 33.21uH 22.93 1.30 A 0.166 132.86 0.65 A 0.662 91.72 CTX33-4P-R 0 $5.00

CX33-4-SD 33.12uH 16.82 1.80 A 0.072 132.50 0.90 A 0.287 67.27 CTX33-4--R 0 $5.00

CX33-2-IP 32.67uH 21.29 1.30 A 0.126 130.70 0.65 A 0.503 85.17 CTX33-2P-R 0 $5.00

CX33-2-SD 31.77uH 15.90 1.40 A 0.105 127.09 0.70 A 0.420 63.59 CTX33-2-R 0 $5.00

CX25-4-SD 25.92uH 13.32 2.00 A 0.063 103.68 1.00 A 0.253 53.37 CTX25-4-R 0 $5.00

CX25-4-IP 25.65uH 17.17 1.60 A 0.115 102.60 0.80 A 0.461 68.68 CTX25-4P-R 0 $5.00

CX25-2-HF 25.6uH 25.00 2.08 A 0.111 102.38 1.04 A 0.443 80.00 CTX25-2A-R 15 $10.00

CX25-4-HF 25.14uH 25.00 2.65 A 0.048 100.51 1.32 A 0.193 69.00 CTX25-4A-R 2

CX25-2-SD 24.86uH 16.09 1.00 A 0.117 99.45 0.50 A 0.466 64.35 CTX25-2-R 0 $5.00

CX25-2-IP 24.79uH 16.60 1.40 A 0.109 99.14 0.70 A 0.436 66.38 CTX25-2P-R 0 $5.00

CX20-2-SD 20.73uH 12.36 1.30 A 0.107 82.91 0.65 A 0.426 49.46 CTX20-2-R 0 $5.00

CX20-4-IP 20.62uH 13.44 1.90 A 0.084 82.47 0.95 A 0.337 53.76 CTX20-4P-R 0 $5.00

CX20-2-HF 20.22uH 20.00 2.34 A 0.078 80.90 1.17 A 0.313 62.00 CTX20-2A-R 0 $5.00

CX20-4-SD 19.6uH 10.68 2.10 A 0.055 78.40 1.05 A 0.220 42.73 CTX20-4-R 0 $5.00

CX20-2-IP 19.58uH 13.37 1.50 A 0.097 78.34 0.75 A 0.387 53.48 CTX20-2P-R 47 $5.00

CX20-4-HF 19.58uH 20.00 3.00 A 0.034 78.30 1.50 A 0.135 52.00 CTX20-4A-R 0 $5.00

CX15-2-HF 15.48uH 15.00 2.68 A 0.054 61.94 1.34 A 0.218 46.00 CTX15-2A-R 0 $5.00

CX15-2-SD 15.23uH 8.53 1.70 A 0.059 60.91 0.85 A 0.236 34.10 CTX15-2-R 0 $5.00

CX15-2-IP 14.99uH 10.51 1.60 A 0.085 59.98 0.80 A 0.339 42.02 CTX15-2P-R 0 $5.00

CX15-4-IP 14.76uH 9.52 2.30 A 0.057 59.09 1.15 A 0.228 38.09 CTX15-4P-R 0 $5.00

CX15-4-HF 14.7uH 15.00 3.46 A 0.029 58.81 1.73 A 0.117 42.00 CTX15-4A-R 0 $5.00

CX15-4-SD 14.16uH 6.76 3.00 A 0.024 56.64 1.50 A 0.096 27.03 CTX15-4-R 0 $5.00

CX10-2-HF 11.38uH 10.00 3.13 A 0.047 45.50 1.56 A 0.188 35.00 CTX10-2A-R 0 $5.00

CX10-2-SD 10.58uH 5.18 2.50 A 0.031 42.30 1.25 A 0.125 20.72 CTX10-2-R 0 $5.00

CX10-4-HF 10.53uH 10.00 4.09 A 0.020 42.11 2.05 A 0.081 28.00 CTX10-4A-R 0 $5.00

CX10-4-IP 9.88uH 6.70 2.50 A 0.047 39.53 1.25 A 0.187 26.79 CTX10-4P-R 0 $5.00

CX10-2-IP 9.83uH 6.73 2.10 A 0.045 39.30 1.05 A 0.179 26.92 CTX10-2P-R 0 $5.00

CX10-4-SD 9.6uH 4.82 3.40 A 0.019 38.42 1.70 A 0.078 19.28 CTX10-4-R 0 $5.00

CX8-4-HF 8.7uH 8.00 4.50 A 0.015 34.80 2.25 A 0.059 23.00 CTX8-4A-R 0 $5.00

CX8-4-SD 8.28uH 4.29 3.50 A 0.018 33.12 1.75 A 0.072 17.14 CTX8-4-R 0 $5.00

CX8-2-SD 7.94uH 4.18 2.60 A 0.027 31.77 1.30 A 0.108 16.72 CTX8-2-R 0 $5.00

CX8-4-IP 7.81uH 5.15 3.00 A 0.033 31.23 1.50 A 0.131 20.61 CTX8-4P-R 0 $5.00

CX8-2-IP 7.65uH 5.31 2.30 A 0.040 30.60 1.15 A 0.158 21.23 CTX8-2P-R 0 $5.00

CX5-4-IP 5.15uH 3.56 3.30 A 0.027 20.62 1.65 A 0.107 14.23 CTX5-4P-R 0 $5.00

CX5-2-HF 5.06uH 5.00 4.69 A 0.021 20.22 2.34 A 0.084 16.00 CTX5-2A-R 0 $5.00

CX5-2-IP 4.9uH 3.57 2.50 A 0.032 19.58 1.25 A 0.128 14.26 CTX5-2P-R 0 $5.00

CX5-4-SD 4.9uH 2.59 4.40 A 0.014 19.60 2.20 A 0.056 10.37 CTX5-4-R 0 $5.00

CX5-2-SD 4.7uH 2.66 3.00 A 0.021 18.80 1.50 A 0.084 10.65 CTX5-2-R 0 $5.00

CX5-4-HF 4.26uH 5.00 6.43 A 0.009 17.05 3.21 A 0.034 12.00 CTX5-4A-R 0 $7.00

CX2-2-SD 2.3uH 1.27 4.50 A 0.010 9.21 2.25 A 0.038 5.07 CTX2-2-R 0 $5.00

CX2-2-IP 2.18uH 1.56 3.90 A 0.014 8.70 1.95 A 0.055 6.26 CTX2-2P-R 0 $5.00

CX2-4-HF 2.18uH 2.00 9.00 A 0.006 8.70 4.50 A 0.025 6.00 CTX2-4A-R 0 $5.00

CX2-2-HF 1.98uH 2.00 7.50 A 0.009 7.90 3.75 A 0.035 7.00 CTX2-2A-R 0 $5.00

CX2-4-IP 1.95uH 1.42 4.60 A 0.014 7.81 2.30 A 0.055 5.69 CTX2-4P-R 0 $5.00

CX2-4-SD 1.76uH 1.06 4.90 A 0.007 7.06 2.45 A 0.028 4.24 CTX2-4-R 0 $5.00

CX1-4-HF 1.39uH 1.00 11.25 A 0.005 5.57 5.63 A 0.021 4.00 CTX1-4A-R 0 $5.00

CX1-2-HF 1.26uH 1.00 9.38 A 0.006 5.06 4.69 A 0.023 4.00 CTX1-2A-R 0 $5.00

CX1-4-SD 1.23uH 0.85 5.00 A 0.006 4.90 2.50 A 0.024 3.41 CTX1-4-R 0 $5.00

CX1-2-IP 1.22uH 0.89 5.00 A 0.008 4.90 2.50 A 0.033 3.57 CTX1-2P-R 0 $5.00

CX1-2-SD 1.18uH 0.76 4.60 A 0.007 4.70 2.30 A 0.028 3.04 CTX1-2-R 0 $5.00

CX1-4-IP 1.1uH 0.81 5.90 A 0.008 4.39 2.95 A 0.033 3.24 CTX1-4P-R 0 $5.00

CX0.68-2-IP 0.85uH 0.64 5.40 A 0.007 3.40 2.70 A 0.029 2.55 CTX0.68-2P-R 0 $5.00

CX0.68-4-SD 0.78uH 0.55 6.00 A 0.005 3.14 3.00 A 0.020 2.21 CTX0.68-4-R 0 $5.00

CX0.68-4-IP 0.76uH 0.56 7.20 A 0.006 3.05 3.60 A 0.023 2.24 CTX0.68-4P-R 0 $5.00

CX0.68-2-SD 0.75uH 0.50 5.50 A 0.006 3.01 2.75 A 0.024 1.98 CTX0.68-2-R 0 $5.00

CX0.68-4-HF 0.744uH 0.68 15.00 A 0.004 2.98 7.50 A 0.016 2.00 CTX0.68-4A-R 0 $5.00

CX0.68-2-HF 0.675uH 0.68 12.50 A 0.005 2.70 6.25 A 0.018 2.00 CTX0.68-2A-R 0 $5.00

CX0.47-2-IP 0.54uH 0.42 5.90 A 0.006 2.18 2.95 A 0.024 1.68 CTX0.47-2P-R 0 $5.00

CX0.47-4-IP 0.49uH 0.37 7.90 A 0.005 1.95 3.95 A 0.019 1.49 CTX0.47-4P-R 0 $5.00

CX0.47-4-SD 0.44uH 0.32 7.00 A 0.004 1.76 3.50 A 0.016 1.29 CTX0.47-4-R 0 $5.00

CX0.47-2-SD 0.42uH 0.29 6.50 A 0.005 1.69 3.25 A 0.019 1.17 CTX0.47-2-R 0 $5.00

CX0.33-4-HF 0.313uH 0.33 22.50 A 0.003 1.25 11.25 A 0.012 1.00 CTX0.33-4A-R 0 $5.00

CX0.33-2-HF 0.284uH 0.33 18.80 A 0.003 1.14 9.38 A 0.013 1.00 CTX0.33-2A-R 0 $5.00

CX25-2-HF-TR 0

Min: 0 Units: 0

Displaying 1 to 100 (of 100 products)
