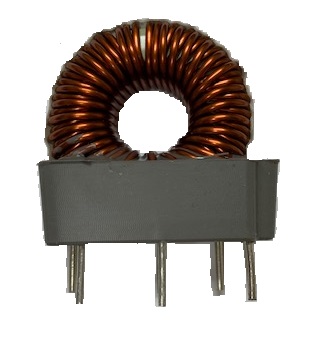

Automotive Potted Inductor

Automotive Potted Inductor using Macroplast potting material
Available with different rating current, Inductance value
and overall mechanical dimensions. Different core materials are available:
High Flux, Mega Flux/XFlux, MPP and Sendust/KoolMu.

Application Notes: Polysiloxane potting compound
Application notes: Polysiloxane potting compound

Application Notes: Macroplast/Macrocast
Application notes: Macrocast/Macroplast



Part Number Inductance Current Rating Inductance @
Rated Current		 DCR
Max		 SRF
Min		 Dimension
A/B/C
Inches		 Dimension
D/E/F
Inches		 Dimension
P/P1/P2
Inches		 Quantity
on hand		 Price
HF358-601M-8AV-P 600uH 8 Amps 364 uH 40 mΩ 954.4 kHz 1.78/1.78/0.50 0.06/0.58/0.85 0.56/1.22/1.66 0
Buy Now
SN358-601M-8AV-S 600uH 8 Amps 364 uH 40 mΩ 954.4 kHz 1.78/1.78/0.50 0.06/0.58/0.85 0.56/1.22/1.66 0
Buy Now
MF270-330M-16AV-P 33uH 16 Amps 29 uH 10 mΩ >10MHz 1.42/1.31/0.50 0.06/0.45/0.76 0.60/NA/NA 0
Buy Now
MF270-330M-16AV-S 33uH 16 Amps 29uH 10 mΩ >10MHz 1.42/1.31/0.50 0.06/0.45/0.76 0.60/NA/NA 0
Buy Now
SN270-270M-17.0AV-P 27uH 17 Amps 13.7uH 4.25 mΩ >10MHz 1.44/1.32/0.32 0.07/0.46/0.78 0.68/NA/NA 0
Buy Now
SN270-270M-17AV-S 27uH 17 Amps 13.7uH 4.25 mΩ >10MHz 1.44/1.32/0.32 0.07/0.46/0.78 0.68/NA/NA 0
Buy Now
HF358-601M-8S-P               0
Buy Now
Min:  0 Units:  0
MF270-330M-16S-P               0
Buy Now
Min:  0 Units:  0
SN270-270M-17S-P               0
Buy Now
Min:  0 Units:  0
