J-56 Series

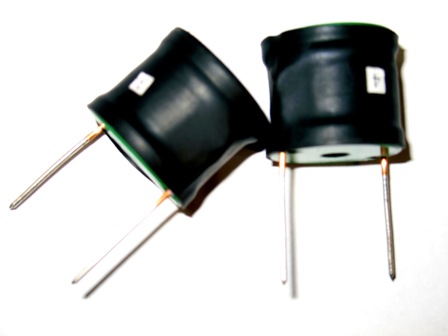

A generic image

Radial Power Chokes and Inductors these are very low cost series
Inductance range from: 5 uH to 10,000 uH
Current range to 25 Amps

J-56 Series of High Current RF Chokes.
Low Cost RF power chokes design for highest saturation current.
Exact cross to JW Miller 5600 Series.




FEATURES:

  • Very high current capacity
  • Ferrite bobbin core design for high saturation current
  • VW-1 rated shrink tubing to cover winding
  • Temperature range of - 55 deg C to 105 deg C
  • Current Rating of 0.9 Amp to 20 Amps
  • DCR of 0.006 ohm to 2.0 ohms
  • Inductance of 5 uH to 10,000 uH
  • Custom designs, custom inductance and customer specified current rating available

Click HERE to see examples of our custom wound products. We wind anything to meet your needs.

IMPORTANT
1) No tooling or set up fees required for standard parts
2) Minimum order : for non-stock items. Samples available for large OEMs
3) Typical Delivery: stock to 6 weeks


Notes:
1) The prices shown below are for low volume quantity. Please call 800-377-3244 or email sales@coilws.com for larger volume OEM pricing.
2) Our large OEM pricing is extremely competitive. We will meet or beat any competitors prices with better deliveries
3) Custom designs are available to meet any of your requirements. Please contact us
4) The data shown below can be sorted by clicking each column header. Click once again to sort in reverse order.
5) Please note that CWS is not affiliated with JW Miller in any manner. The CWS cross to JW Miller part number is based on their published data. Go to cross ref for complete list.
6) Please kindly note that this series will be to discontinued after stock inventory sellout***.




Radial High Current RF Power Chokes



Part Number Inductance +- 10%
at 1.0 Khz		 DCR max Rated Current
DC Amps		 O.D. in inch Height Lead
Spacing
inches		 Wire
gauge		 JW Miller CrossRef 3D Model Qty. Price
J-5617 1000uH 279 milli-ohms 2.5 Amps 1.22 1.11 1.05 0.053 5617-RC 3D STEP In Stock: 0
$8.75
Buy Now
