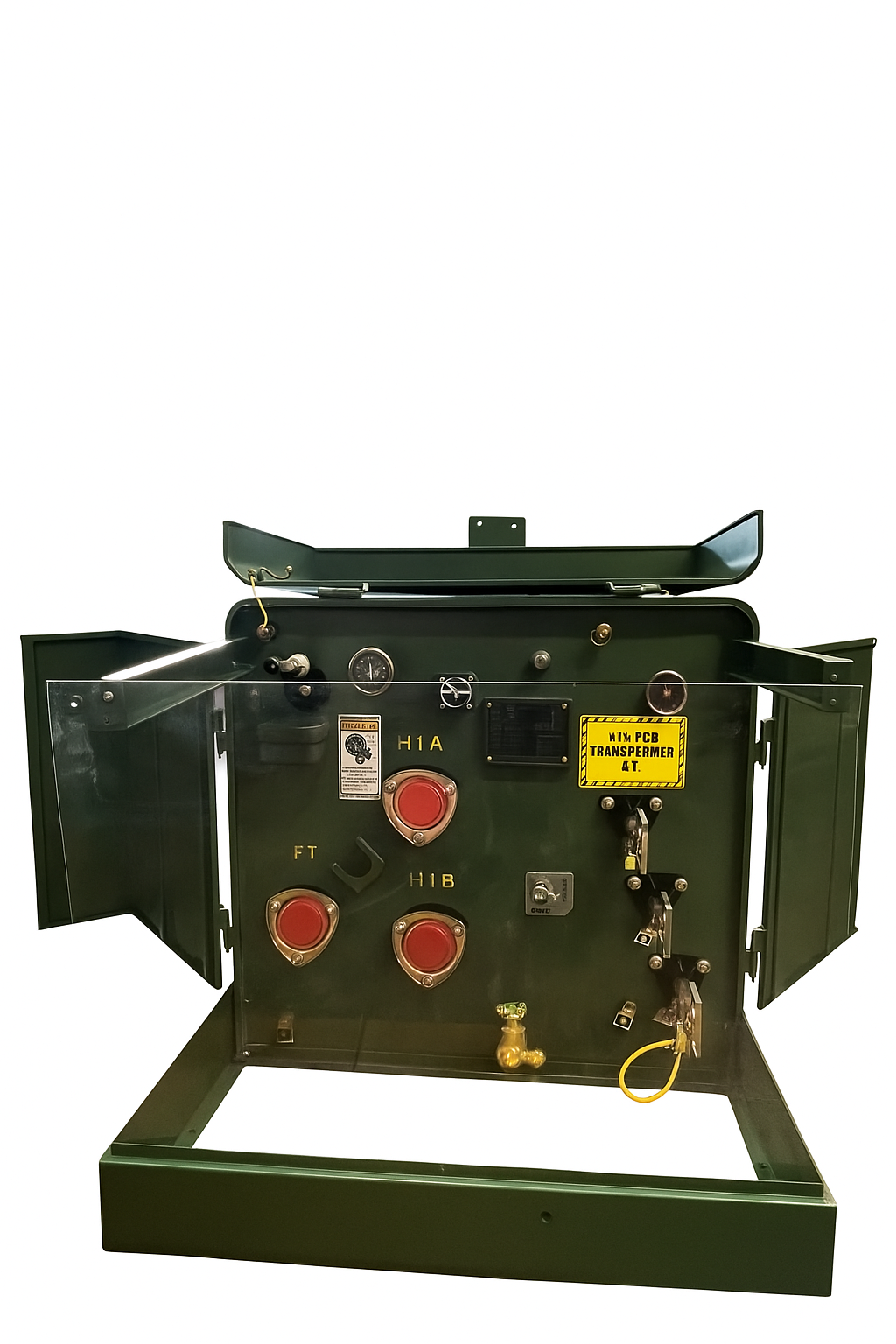

Single Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

A single-phase pad-mounted transformer is designed to convert high-voltage power from underground or overhead distribution systems to lower voltages for residential, agricultural, or light commercial use. Housed in a tamper-resistant, weatherproof enclosure and installed at ground level, it provides safe, efficient, and reliable operation while allowing easy access for maintenance in public or landscaped areas.

• · Rated capacity from 10 to 250 kVA
• · Loop feed or Radial feed Application
• · High Voltage: 2.4 to 19.9 kV
• · BIL, up to 150 kV
• · Low Voltage: 600 V or less
• · Mild steel or stainless Steel tank with a custom color
• · All standard tap configurations are available
• · Over-current Protection:Bayonet-type expulsion fuses or Magne X interrupter
• · Mineral or Seeds oil on request
