72-20X (Epoxy Coated)

A generic image

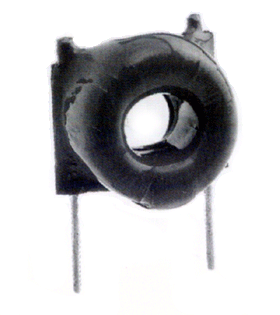

72-200 Series Current Sense Transformer.
Customer Install Single turn primary

Features:

  • Center hole for primary winding
  • Pre-set secondary winding for most common application
  • Desigend for switch mode power supply application
  • 2500 Vrms primary to secondary for hi-pot
  • Frequency range of 20 Khz to 200 Khz
  • Epoxy coated construction
  • Turn ratios of 1: 50 to 1: 300
  • Handles up to 20 Amps of sense current

SPECIFICATIONS

Click the button to see examples of our custom wound products. We wind anything to meet your needs.
Dimension and Schematics
Commercial and Industrial
Bulk packaged

IMPORTANT
1) No tooling or set up fees required for standard parts
2) Minimum order : 20 pieces. Samples available to large OEMs
3) Typical Delivery: 2 to 6 weeks



CONSTRUCTION INFORMATION

Please see pdf files for details.
See link below for some sample PDF files.

72-201
72-202
72-203
72-204



Part Numbering
72 - 200

72 : CWS current sense
200 - Types

Notes:
1 ) The prices shown below are for low volume quantity. Please call  800-377-3244 or
email sales@coilws.com for larger volume OEM pricing.
2 ) Our large OEM pricing is extremely competitive. We will meet or beat any competitors prices with better deliveries
3 ) Custom designs are available to meet any of your requirements. Please contact us
4 ) The data shown below can be sorted by clicking each column header.Click once again to sort in reverse order.
5) Stock qty shown can be shipped immediately. Subject to prior sales. Production qty lead time is 4 to 6 weeks

Customer install Primary, Through Hole, Turn Ratio of 1: 50 to 1: 300
