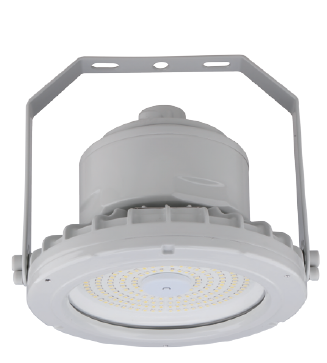

EPLR01B Series LED Explosion Proof Light
EPLR01B Series LED Explosion Proof Light
Classification
- Class I, Division 1
- Groups B, C, D, T5/T6
- Gn 2G Ex db IIC TB Gb
Features
- Mounting Brackets: 2 optional mounting brackets available
- Glass Options: 3 different types of glass available
- Wiring Cavity: Designed to isolate the operator and driver for safer wiring
- Wire Guard: Prevents the glass from being broken
Accessories
Glass Types
- Clear glass
- Clear striped glass
- LI-shaped glass
- Spherical glass
Wire Guards
- Standard wire guard
- U-shaped wire guard
Bracket
- Optional mounting bracket
Dimensions
Glass Dimensions
- Ø195mm (Ø7.68")
- Ø325mm (Ø12.8")
Overall Dimensions
- Height: 200mm (7.87") to 355mm (13.98")
- Width: 165mm (6.5") to 352mm (13.86")
Displaying 1 to 5 (of 5 Products)
| Part Number | Inductance | Input Wattage (W) |
Voltage (Volts) |
Power Factor | THD (%) | Lumen Output (lm) |
Efficacy (lm/w) | Weight (kg) | Qty. | Price |
|---|---|---|---|---|---|---|---|---|---|---|
| AL-EPL01B-R-100WXYZD1 | 0 | 100 W | 120-240V, 120-277V |
>0.9 | ≤20% | 13800-15300 lm | 138-153 lm/w | 10.85 kg | In Stock: 0 | Buy Now |
| AL-EPL01B-R-150WXYZD1 | 0 | 150 W | 120-240V, 120-277V |
>0.9 | ≤20% | 20700-23250 lm | 138-155 lm/w | 11.2 kg | In Stock: 0 | Buy Now |
| AL-EPL01B-R-150WXYZH1 | 0 | 150 W | 120-240V, 120-277V |
>0.9 | ≤20% | 20250-22800 lm | 135-152 lm/w | 11.2 kg | In Stock: 0 | Buy Now |
| AL-EPL01B-R-30WXYZD1 | 0 | 30 W | 120-240V, 120-277V |
>0.9 | ≤20% | 3803-4515 lm | 123-146 lm/w | 3.86 kg | In Stock: 0 | Buy Now |
| AL-EPL01B-R-60WXYZD1 | 0 | 60 W | 120-240V, 120-277V |
>0.9 | ≤20% | 7260-8580 lm | 121-143 lm/w | 3.86 kg | In Stock: 0 | Buy Now |
Displaying 1 to 5 (of 5 Products)
