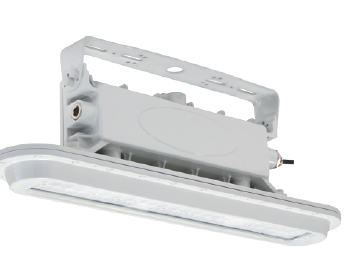

EPLL01B Series LED Explosion Proof Light
EPLL01B Series LED Explosion Proof Light
Specifications
Classifications
- Class I, Division 1, Groups C, D, TS/TS
- G II 2G Ex db IIC TS Gb
Features
- 6 optional mounting brackets
- Separated lamp body and driver for higher heat resistance and better heat dissipation
- 6 different lens options available
- Operates at ambient temperature of 133°F (65°C)
Accessories
Mounting Options
- HM: Chain mount
- WG: Wire guard
- PM: Installation mode for road lamp pole
- Cable mount
- FM: Shape buckle
- CM: Side surface mount
Dimensions
Fixture Dimensions
- 251mm (9.88")
- 649mm (25.55")
- 130mm (5.11")
- 1299mm (51.14")
Displaying 1 to 4 (of 4 Products)
| Part Number | Inductance | Input Wattage (W) |
Voltage (Volts) |
Power Factor | THD (%) | Lumen Output (lm) |
Efficacy (lm/w) | Weight (kg) | Qty. | Price |
|---|---|---|---|---|---|---|---|---|---|---|
| AL-EPLL01-120WXYZD1 | 0 | 120 W | 120-240V, 120-277V |
>0.9 | ≤20% | 14400-17400 lm | 120-145 lm/w | 16.62 kg | In Stock: 0 | Buy Now |
| AL-EPLL01-40WXYZD1 | 0 | 40 W | 120-240V, 120-277V |
>0.9 | ≤20% | 5000-5800 lm | 125-145 lm/w | 10.68 kg | In Stock: 0 | Buy Now |
| AL-EPLL01-80WXYZD1 | 0 | 80 W | 120-240V, 120-277V |
>0.9 | ≤20% | 10000-11600 lm | 125-145 lm/w | 16.71 kg | In Stock: 0 | Buy Now |
| AL-EPLL01-80WXYZH1 | 0 | 80 W | 277-480V | >0.9 | ≤20% | 10000-11600 lm | 125-145 lm/w | 16.32 kg | In Stock: 0 | Buy Now |
Displaying 1 to 4 (of 4 Products)
