SP0503 - Drawings and Land Pattern

Shielded Surface Mount Inductor. Part number: SP 0503

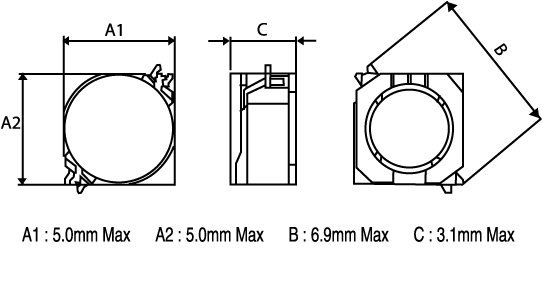

Construction Drawings

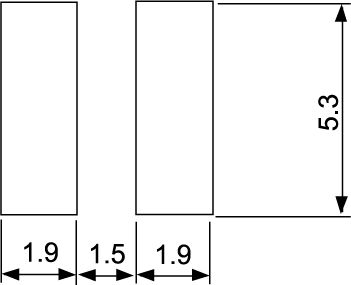

Land Pattern. Units in mm
