SP 139405 - Drawings and Land Pattern

Shielded Surface Mount Inductor. Part number: SP 139405

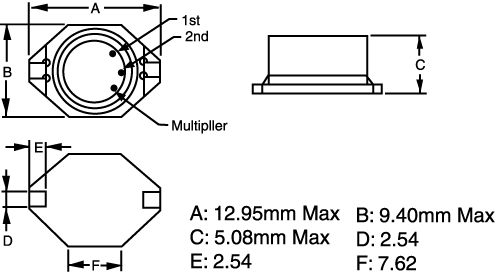

Construction Drawings. All units in mm

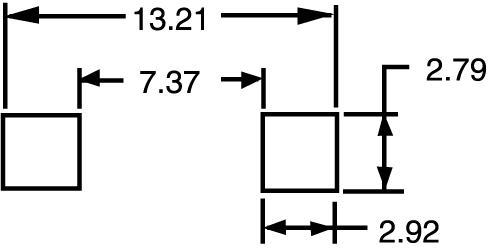

Land Pattern. Units in mm
