SE 1306 - Drawings and Land Pattern

Shielded Surface Mount Inductor. Part number: SE 1306

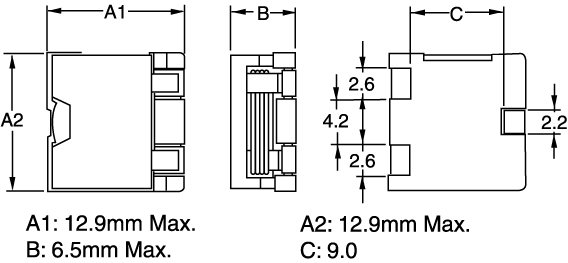

Construction Drawings. All units in mm

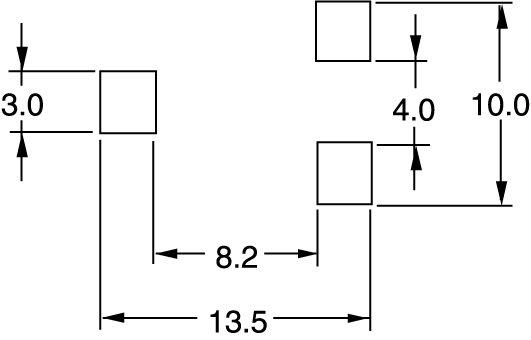

Land Pattern. Units in mm
