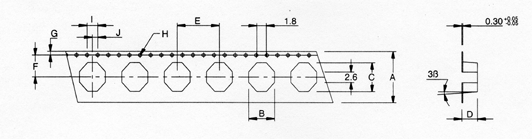

SBP 0603 - Tape & Reel Specs

Dimensions in mm ( 1 inch = 25.4mm )

A	B	C	D	E	F	G	H	I	J
16 +-0.3	4.4 +-0.1	6.7 +-0.1	3 +-0.1	8 +-0.1	7.5 +-0.1	1.75+-0.1	1.5+-0.1	4 +- 0.1	2 +- 0.1

Special lower pricing for orders in reels.
