SD 0501 - Drawings and Land Pattern

Shielded Surface Mount Inductor. Part number: SD 0501

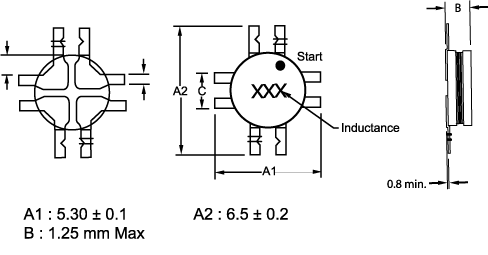

Construction Drawings

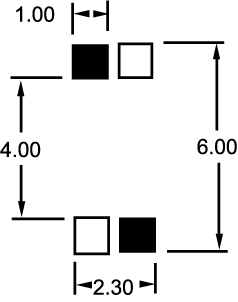

Land Pattern. Units in mm
