Toroidal Power Transformer Dimensions

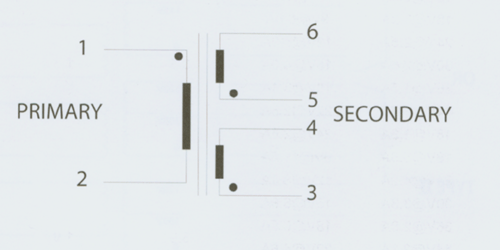

Schematics

Shown here is a dual secondary outputs. Single output version is optional

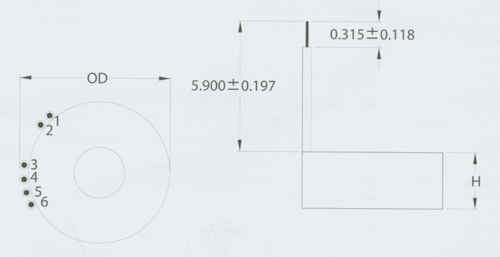

Dimensions

Units are in inches. For mm, please divide by 25.4.
OD ( outer diameter) and H ( height) are shown in the part numbering table.
The numbers 1,2,3,4,5,6 refers to the connections in the schematics above.
