Dimensions of PM-S and PM-H Series

Dimensions for PM-S and PM-H Series of Common Mode Line Chokes.
Please download engineering drawings in .PDF for a more detailed dimensions of the 2 drawings shown below.

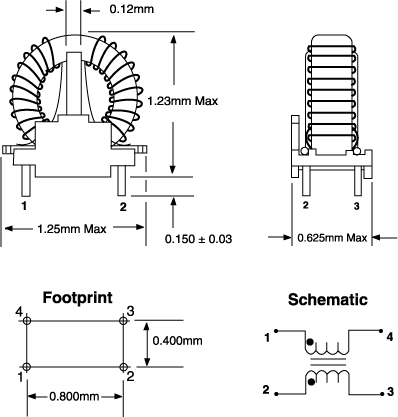

PM-S Series Dimensions, Footprint and Schematic. Wire size: AWG#16

PM-H Series Dimensions, Footprint and Schematic. Wire size: AWG #16

All dimensions in inches not mm
